Remote self diagnosis Device: It monitors the operation status of important parts such as PLC installed in the remote control panel and automatically analyzes the failure status to inform the HMI of the operation center and the operator's mobile terminal of the detailed information and history of the faulty part. As a result, it is a remote control panel self-diagnosis device with AI(artificial intelligence) technology that enables rapid recovery. And it is a product optimized for building a remote control and monitoring system.

Government Excellent Products: Instrumentation control system
(instrumentation control device)

special feature

RSD(Remote Self Diagnosis)

1
Remarkably shortening the repair time by remote self-diagnosis
2
Reduced maintenance costs(reduced labor and transportation costs)
3
Easy fault diagnosis even for non-professional technicians
4
Real-time control panel internal video monitoring
5
History management of faulty devices is possible
6
Emergency control of facilities possible in case of main controller(PLC) failure
7
Securing security (CC EAL4 certification by the National Intelligence Service)

Product main features

01

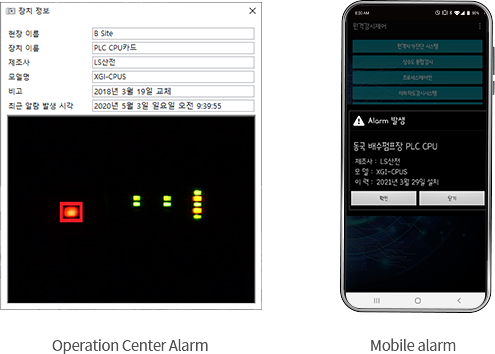

Emergency recovery possible with rapid fault diagnosis

The detailed information and history of the device in which the failure occurred are immediately transmitted to the operation center and mobile to enable rapid recovery, thereby preventing secondary accidents in advance and making fault diagnosis easy even if you are not a professional engineer.
02

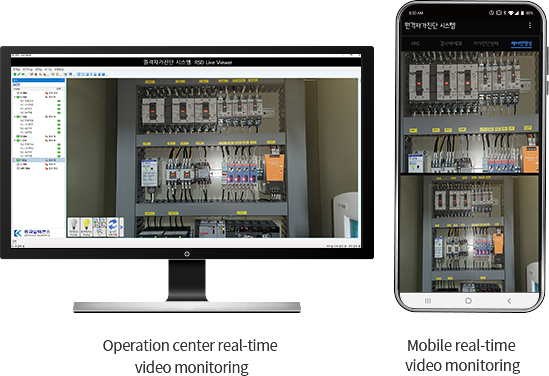

Reduced management cost through real-time video monitoring

The image inside the remote control Station can be checked in real time, saving maintenance costs by reducing moving costs.
03

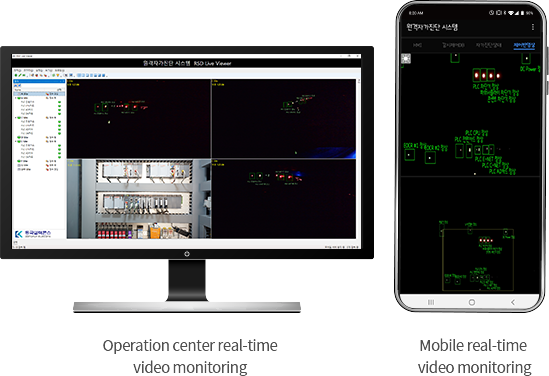

Real-time monitoring of internal device status

By using the light attached to the camera, you can check the current status of the internal devices of the control panel such as MCCB through real-time video without going to the site.
04

Mobile HMI support

Using the dedicated drawing tool, the same expression as SCADA for PC is possible, and remote control and monitoring are possible regardless of time and place.
05

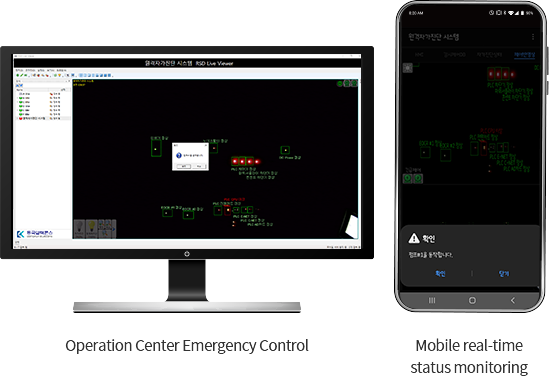

emergency control function

n the event of a malfunction of the main controller such as PLC, important mechanical equipment such as pumps and sluice gates can be manually controlled through the self-diagnosis device without going through the main controller.
06

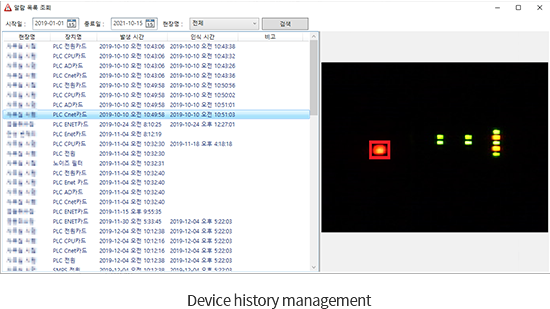

Internal device history check

It helps in facility maintenance by storing and checking the history of the faulty device,

Applicable facilities

Water supply facilities

Water purification plant, Water intake plant, Pressurized field
Sewage facilities

Sewage treatment plant, Village sewage treatment plant.
Environmental basic facilities

Wastewater treatment plant, Manure treatment plant. Livestock wastewater treatment plant.
Agricultural water facilities

Reservoir (dam), pumping station, drainage station, drainage lock gate water gate, drain gate
Disaster prevention facilities

Drainage pumping station (rainwater), rainwater storage facility, Smart Flood Management System
Other facilities

Electricity monitoring, electric railway, etc.

Certification Status

System Configuration
